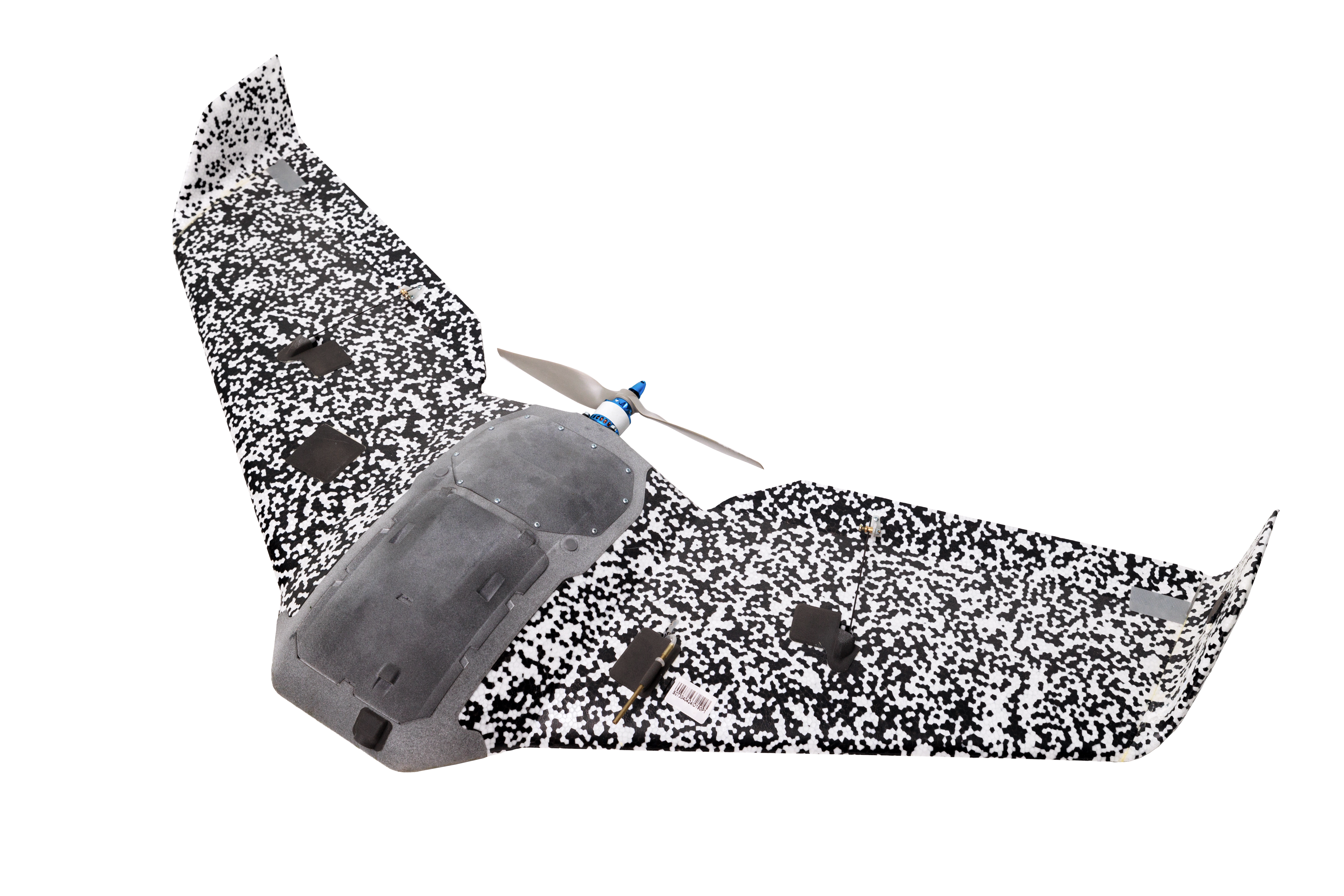

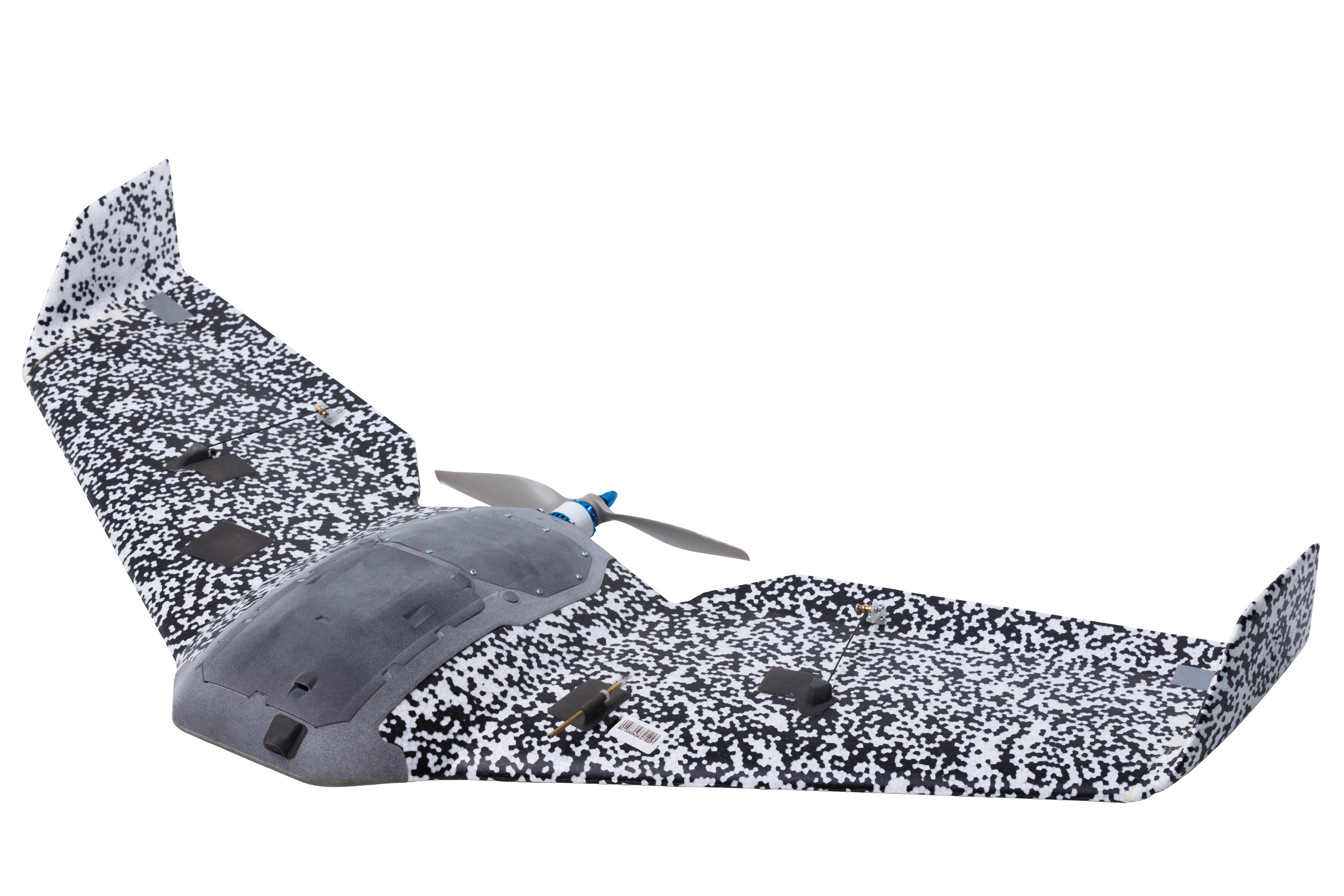

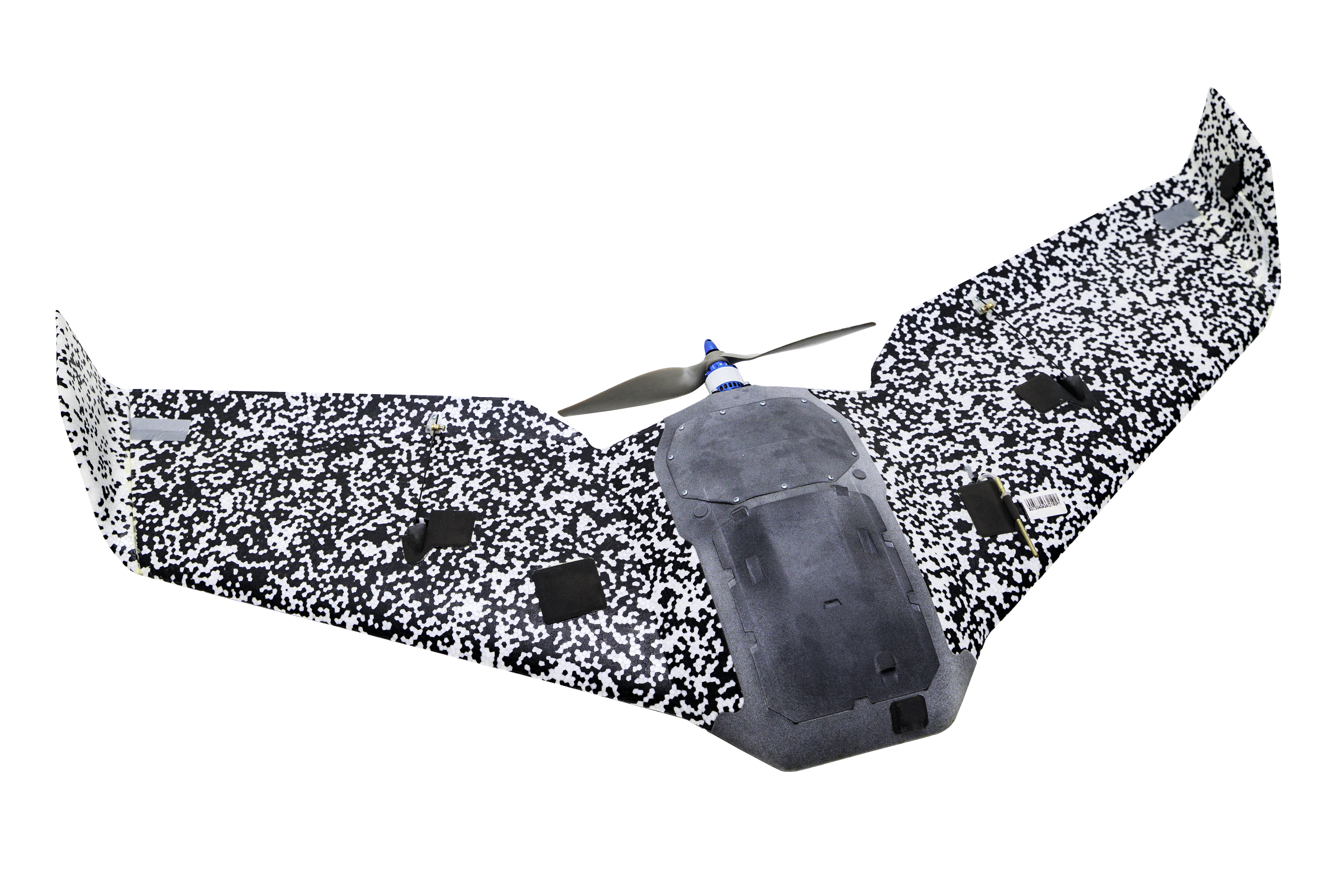

The new multi-purpose Sirko 2M
Able to climb to a height of up to a kilometer, and transmit video up to a distance of 25 km!
Basic tiles
Improved camera resolution
- 4K, 50/30 fps
Flight trajectory adjustment using the “You Hear” function
Extended Flight Duration
- 120 min+ (summer)
Increased cruising speed
- 21 m/s
Learn more about the drone.
Watch the video:
Watch Video
Designation of BpAK “ТХХ BpAK Sirko 2M”
-
Intelligence
-
Reconnaissance
-
Fire Adjustment

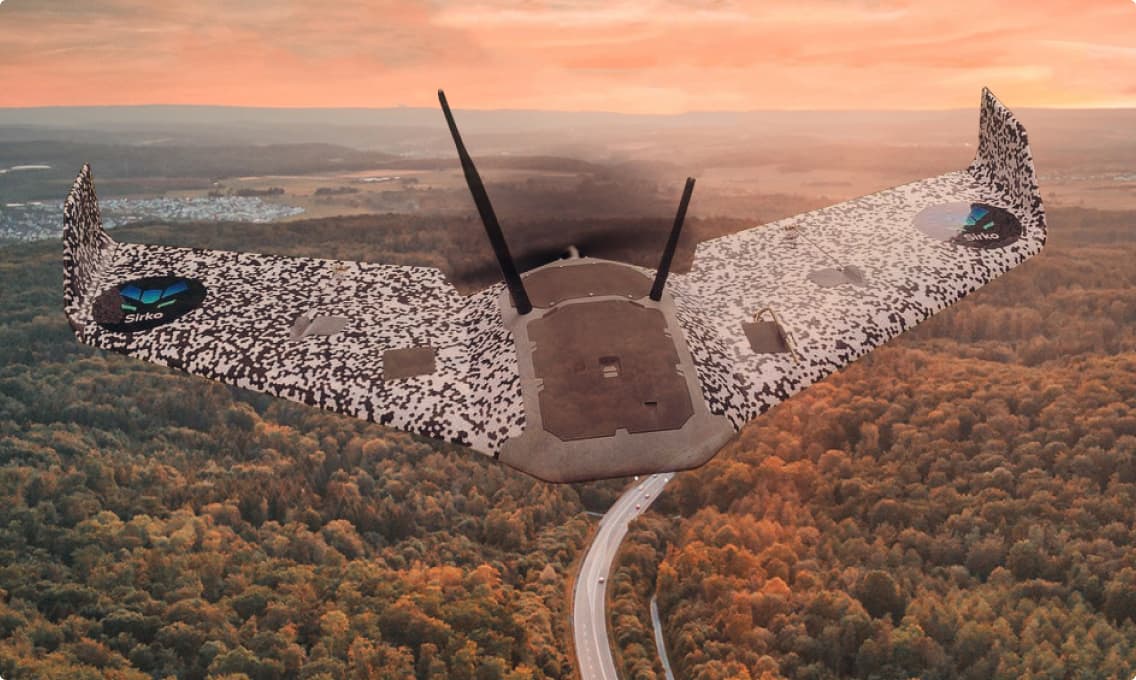

The main features of BpAK "ТХХ BpAK Sirko 2M"
-
Small size
The length of the wing is only 90 cm and at an operating height of 200-300 m, Sirko is not visible at all. That is, it is completely invisible to the ordinary eye -
Recklessness
At an operating height of 200-300 meters, the drone is completely inaudible thanks to the use of an electric motor -
Radio Stealth
Sirko is 90% made of polymer radio-transparent materials. Together with its small size, it is very difficult to detect it by the radar method -
Video link for 25 km with a working height of 200-300m
The drone transmits a stream encoded analog telemetry signal and an analog encoded camera signal to the ground station. The video is transmitted to any device or simultaneously to two devices (laptop, tablet, smartphone). -
Inertial navigation system
If the drone was detected in some incredible way and a GPS jammer was used on it, no problem. The drone is equipped with an inertial navigation system that allows it to continue the mission even without using GPS. -
Convenient packaging
The complex is divided into special backpack bags. This allows it to be unfolded and folded in a matter of minutes, and the operator can move around with free hands. -

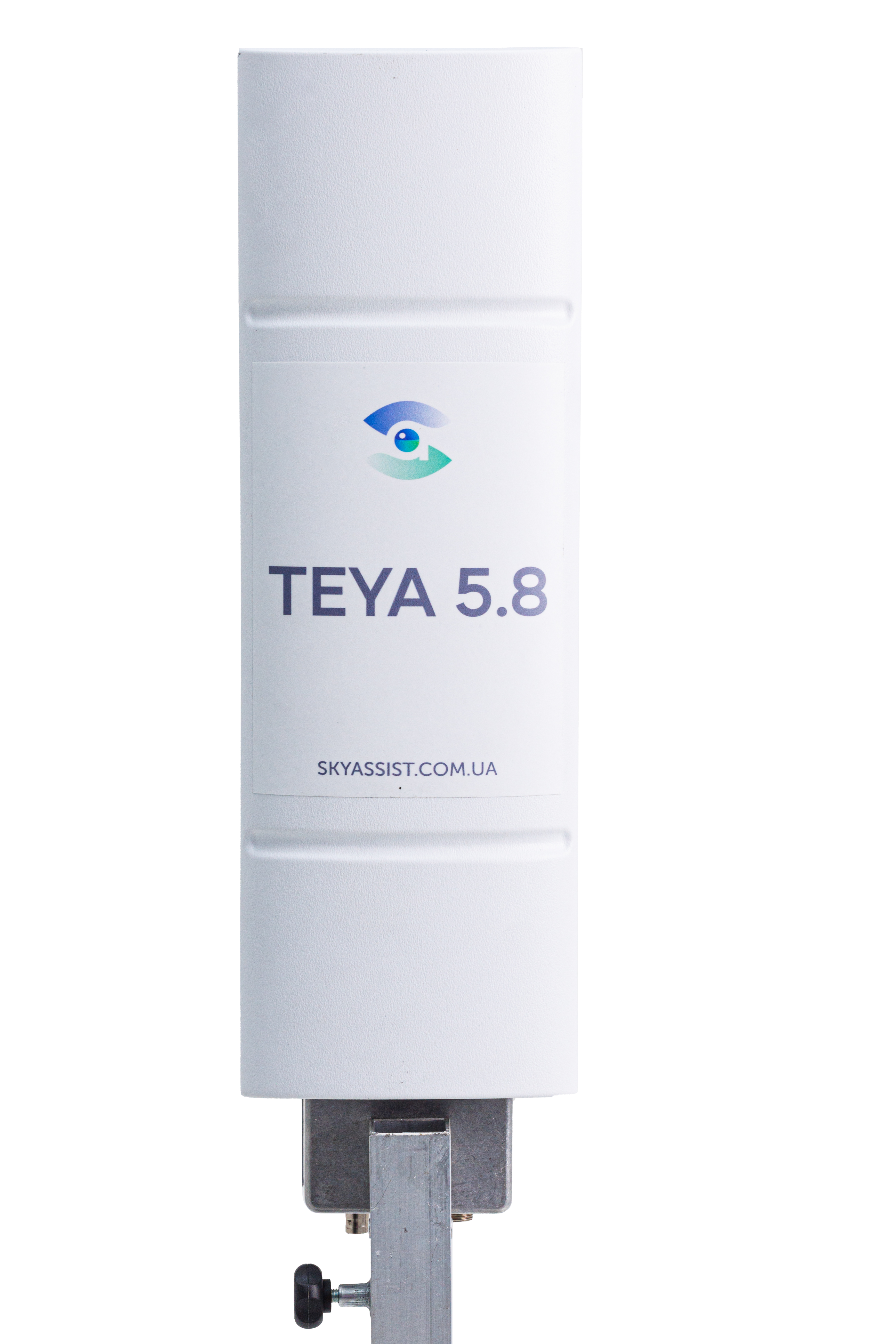

Remote Terrestrial Antenna
The terrestrial antenna can be remote from the operator at a distance of up to 25 meters. This is done for the safety of the operator. Complete sets with radio communication at a distance of up to 100 m are also available to order. -
Quick on-site repair
The drone is equipped with everything necessary for quick repairs. And mechanical damage to the case is eliminated with the help of polymer glue, which is also included in the delivery kit -
Improved video streaming at dusk
Our team has developed special software that, together with a light-sensitive camera, allows you to get a clear image even at dusk. -
Strong material
The Sirko UAV is made of durable material, due to which it is not picky about landing conditions. The middle part of the drone can withstand light and medium impacts. -
Handy player with digital zoom
We have developed our own player that can record videos from UAVs on a PC. You can also take photos of the drone in one click. And most importantly - digital zoom up to x8 for both streaming and recording.
Technical specifications
-
General characteristics
-
Flight duration90+min (winter)/120+min (summer)
-
Working altitude for reconnaissance500-800 m
-
Working height for reconnaissance250-300 m
-
Max Height1000 m
-
Крейсерська швидкість18 м/с
-
Dumping speed13.5 m/s
-
Max Speed32 m/s
-
Maximum route length100-130 km
-
Maximum permissible wind speed at takeoff14 m/s
-
Maximum permissible wind speed in flight20 m/s (gusts up to 25 m/s)
-
Distance from the UAV to the antenna station (video link)25 km
-
Wireless distance between the antenna and the operator100 m
-
Manual Stabilized Flight Control Option in FBW a/b mode+
-
Force GPS off+
-
-
Dimensions
-
Wingspan0.93 m
-
Takeoff weight1.37 kg
-
Materialsradiotransparent polymers of the EPO type
-
-
Screw motor group
-
Engineelectric
-
Onboard PowerLi-Po battery
-
Battery capacity12.6 A/h
-
Screw10x7, pushing
-
-
Communication
-
Controls and Telemetry+
-
Video linkEncryption of own development
-
Communication between antenna and operator- Radio communication at a distance of up to 100m;
- Wire connection. The length of the cable is 25 m.
-
-
Navigation
-
MEMS inertial navigation systembased on air controller
-
Satellite navigation, which can be forcibly turned off+
-
Flight path adjustmentusing the “You hear” function
-
Program for taking into account wind strength and direction+
-
-
Payload
-

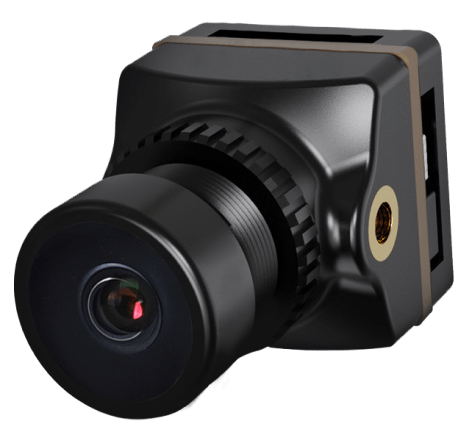

Reconnaissance CameraHawkeye 4K Split Cam Gyroflow 3D Stable with Two-Axis Steerable Suspension
-
Course CameraRam Kam NANO with a viewing angle of 155 degrees
-
Recon camera resolution4K, 50/30 fps
-
Reconnaissance Camera LensF8 with filter
-
On-board video recordingdigital
-
Video linkanalog
-
Video recording on NSC+
-
-
SOFT
-
Mission builder and flight controlcustomized version of Mission Planner
-
A program to improve the image in difficult conditions (dusk, fog, etc.)+
-
Video Playerown development, with digital zoom up to X8
-
-
Packaging
-
Specialized carrying bags for UAVs and NSCs+
-
Where and how to buy BpAK "ТХХ BpAK Sirko 2M"
Everything is simple. You place an order on the website, pay, and our manager will contact you shortly to confirm the order. Everything is like in an online store.
Drone only
Suitable for those who already have components and only need a drone
Sets for different tasks

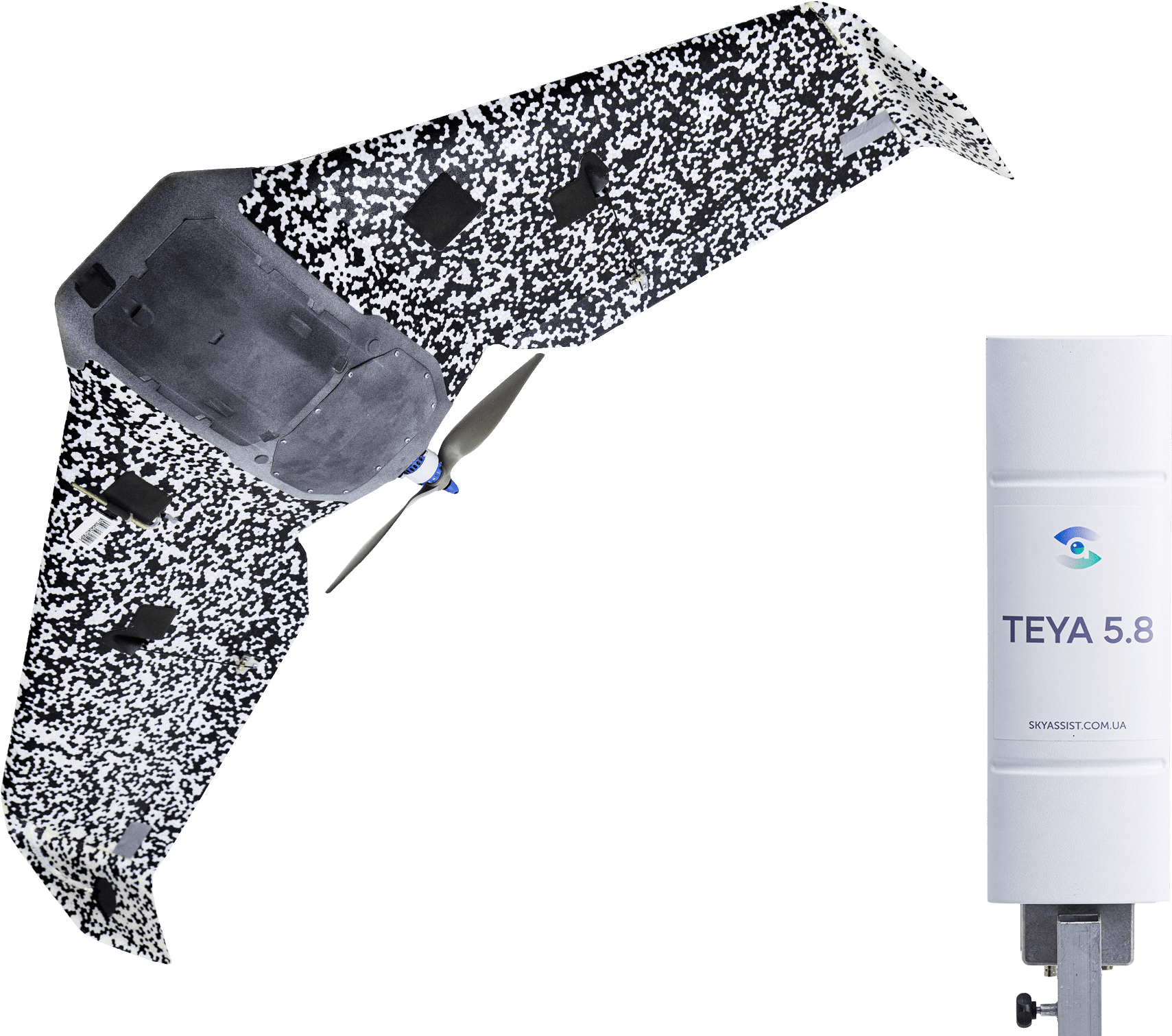

Set with one BpAK
Starter kit for small units

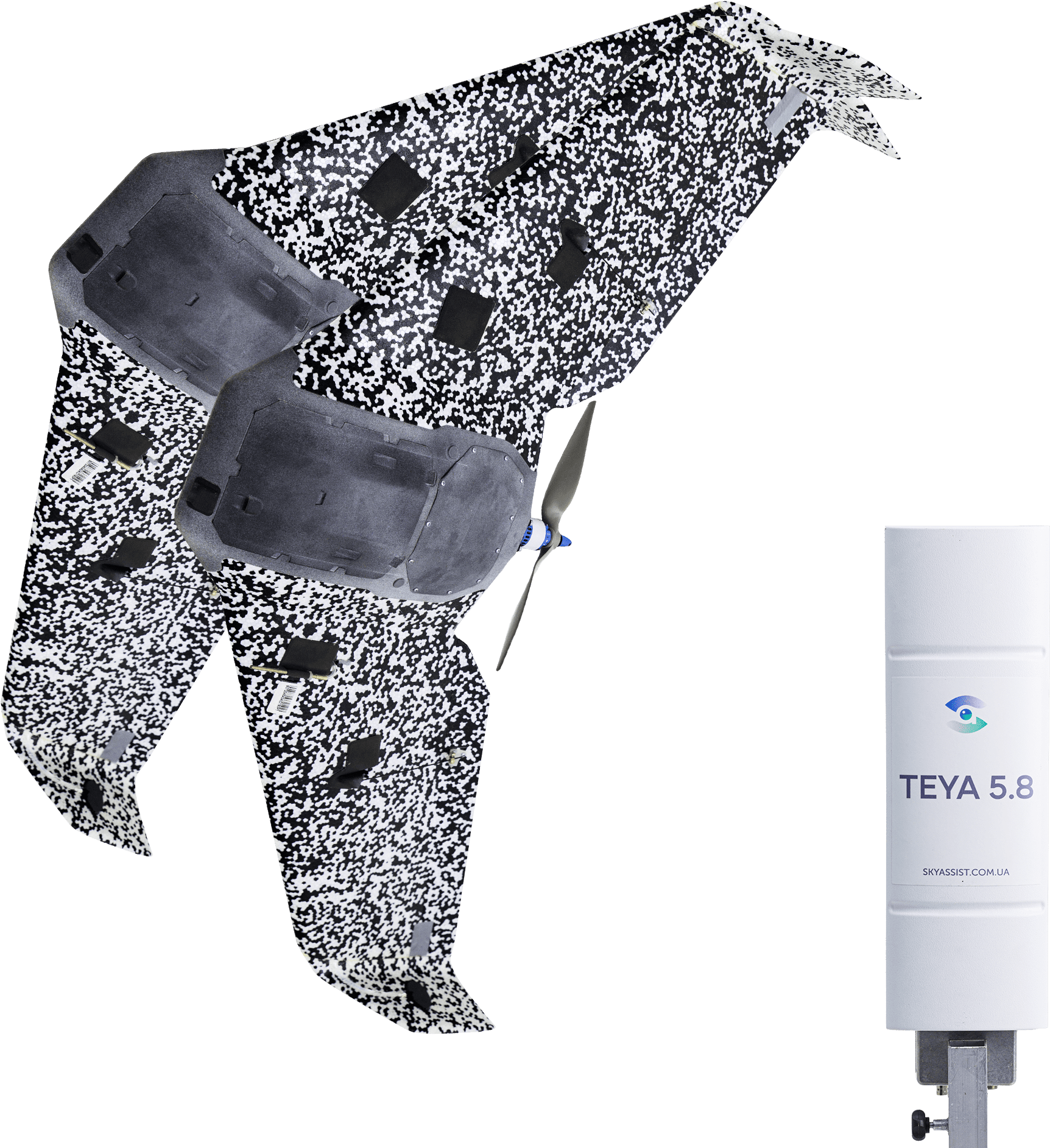

Set with two BpAK
The optimal set for most divisions

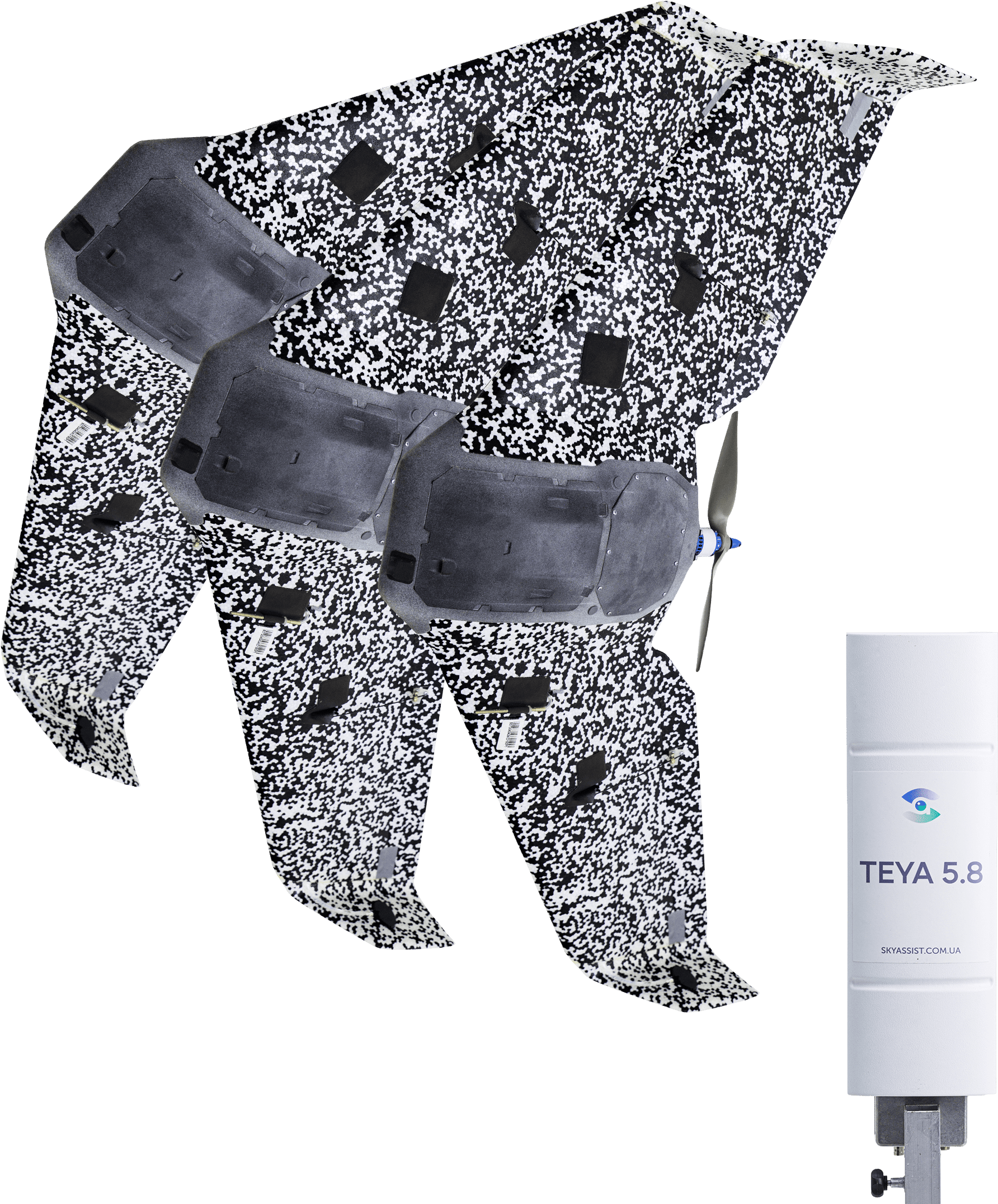

Set of three UAVs
Reliable intelligence kit
The set includes:
-
Bag
-
Spare battery
-
Telemetry Antenna
-
Video antenna
-
Rem Kit
-
25 meter cable
-
2 spare screws
-
Charger
Additionally:
Wireless radio communication
We have developed a device that will help you get rid of long wires and quickly disassemble the complex. The system consists of a complex that is attached to a ground station and a device that is connected to a PC via a USB port.
